Ertex photovoltaic cells

ertex solar provides building integrated photovoltaic (BIPV) solutions for renewable buildings. Our solar panels produce electricity that can be integrated into façades, skylights, balcony rails and conservatories.

Functions can be customised, depending to each installation of an insulated glass unit, brise soleil or overhead glazing. There is a range of different sizes, shapes and colours available, which are built in laminated safety glass.

Photovoltaic panels for glass façades

ertex solar is well-known for its production capacity when it comes to maximum dimensions. Dimensions above 4m are required to cover glass façades.

Triple insulated glass unit for the Stadtwerke Konstanz energy cube in Germany.

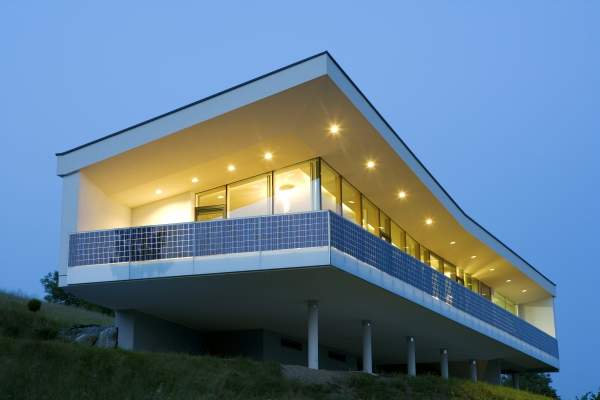

A photovoltaic balcony handrail for a private project in Austria.

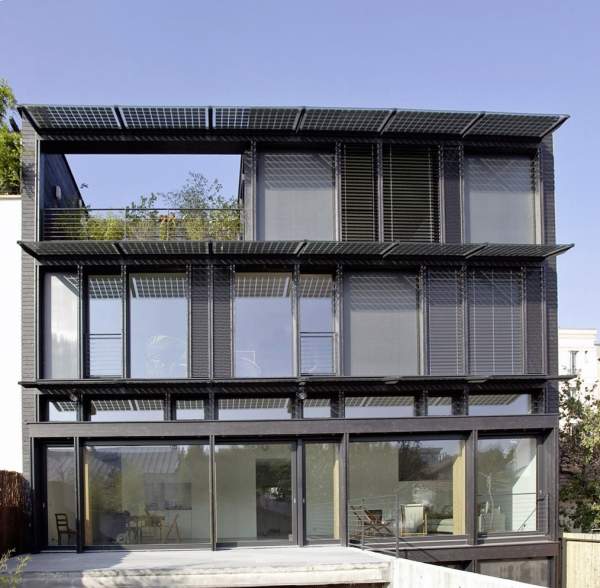

Photovoltaic shading system as a brise soleil in a private house in France.
Car park with bended photovoltaic panels shown at the Glasstec in Düsseldorf, Germany.
Photovoltaic panels at Utrecht Station in the Netherlands.

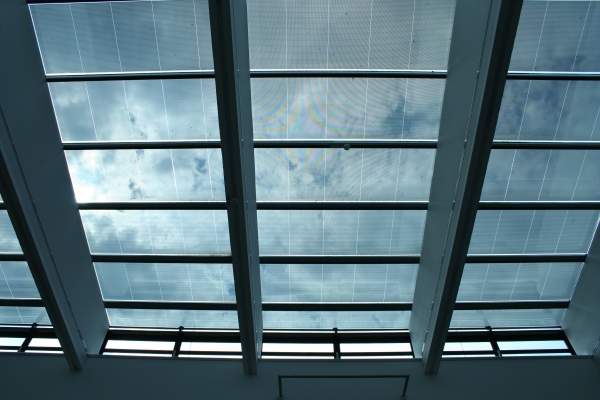

Thin film photovoltaic in a big glass roof shows the function as a insulated glass unit and a shading device.

A panel size with extreme dimensions of 3m x 4m, for example, was used for the energy cube for municipality utility company Stadtwerke Konstanz in Germany.

To accommodate larger areas, ertex solar panels are available in sizes up to 3m x 6m.

Colourful photovoltaic backs sheets and interlayers

In addition to the basic colours of blue and black, there is a wide range of colours available. Colourful back sheets or interlayers provide our customers with flexible options.

ertex solar is investing in a major R&D programme on how homogeneity combined with a greater variety can be achieved, which measures the electrical performance of such colour changes.

Semitransparent photovoltaic panels

Panels with standard cells provide only 15% transparency from light that shines through gaps between the cells. By increasing the distance between the cells, this transparency rate will also increase.

Another possibility is to install ‘semitransparent cells’, which have smaller holes. With similar power rates to standard cells, better transparency results can be reached. Another semitransparent photovoltaic is thin-film see-through technology, such as Opac panels, which are treated with a laser and offer transparency of up to 50%.

Bended photovoltaic panels

Bended glass-to-glass panels are also available for special architectural requirements. The minimum radius is approximately 2m and it is important that the right glass is chosen for the bending process.

Building integrated photovoltaic (BIPV) solutions

The shortcut for integration of photovoltaic into buildings is known in the industry as building integrated photovoltaic (BIPV) solutions.
This means that electricity production and other functions are achievable, such as a building skin, a thermal-insulated glass unit, shading device and fall prevention.

About ertex solar

ertex solar was founded in 2004. One of our main investors is Ertl Glas, which has vast experience in glass manufacturing. Therefore, ertex solar combines glass and photovoltaic experience to deliver the best solutions for each building.

If you are interested in what ertex solar has to offer, please do not hesitate to contact us.
